AutoCAD® by Dennis Lai.[ LED ] [ Cross Section ] [ Inside Base ] [ Bottom Cover ]
AutoCAD® by Dennis Lai.

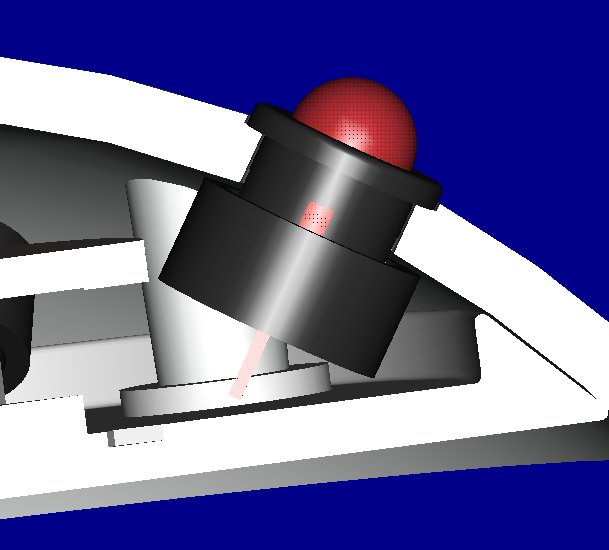

This graphic of a single LED highlights two design features. First, it shows that each LED is held firmly in place with a two-piece LED holder. Second, it shows that the LED holder is countersunk into the surface of the base. This process ensures that the LED is set firmly in its place.
